Wärtsilä W50DF – Delivery tools

Tools for Engine main systems

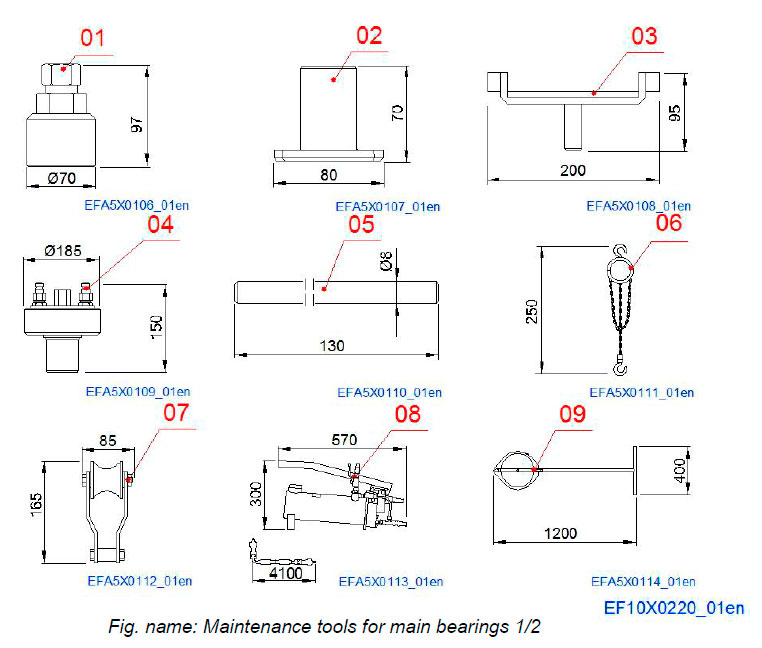

MAINTENANCE TOOLS FOR MAIN BEARINGS 1/2

  • 01 Mounting device for M56 screws - 1,0 kg
  • 02 Turning tool - 0,5 kg
  • 03 Turning tool for axial bearing - 3,4 kg
  • 04 Hydraulic cylinder for M56 screw - 13 kg
  • 05 Pin for tightening of nuts - 0,1 kg
  • 06 Chain tackle 1000 kg - 10 kg
  • 07 Transport device - 0,6 kg
  • 08 Hydraulic pump (150 bar) - 15 kg
  • 09 Lifting tool for hydraulic cylinder - 10 kg

Maintenance tools for main bearings 1/2

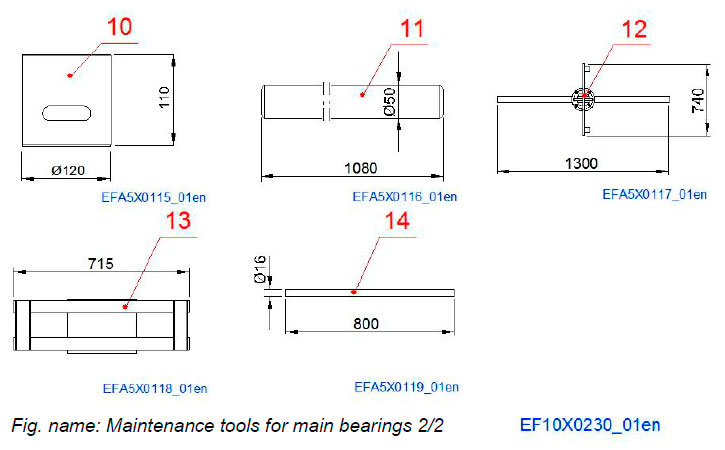

MAINTENANCE TOOLS FOR MAIN BEARINGS 2/2

Maintenance tools for main bearings 2/2

  • 10 Distance sleeve for hydraulic cylinder - 4,4 kg
  • 11 Bar for lifting tool - 17 kg
  • 12 Transport device - 16 kg
  • 13 Assembly guide for connecting rod - 3,1 kg
  • 14 Guide lever for piston - 1,2 kg

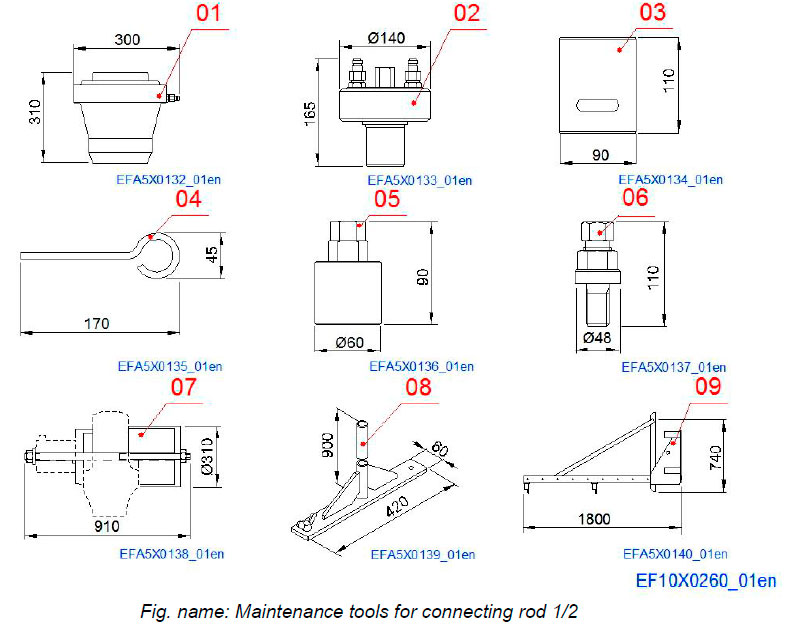

MAINTENANCE TOOLS FOR CONNECTING ROD 1/2

Maintenance tools for connecting rod 1/2

  • 01 Hydraulic tightening device (M72x6) - 66 kg
  • 02 Hydraulic tightening device (M42) - 10 kg
  • 03 Distance sleeve 2,3 kg
  • 04 Pin for tightening of nuts - 0,1 kg
  • 05 Mounting/dismounting device for M42 screw - 0,5 kg
  • 06 Mounting tool for screws (M72x6, M90x6) - 0,8 kg
  • 07 Assembly tool for gudgeon pin bearing - 46 kg
  • 08 Guide lever for lower part of connecting rod - 4,5 kg
  • 09 Mounting device for big end bearing - 150 kg

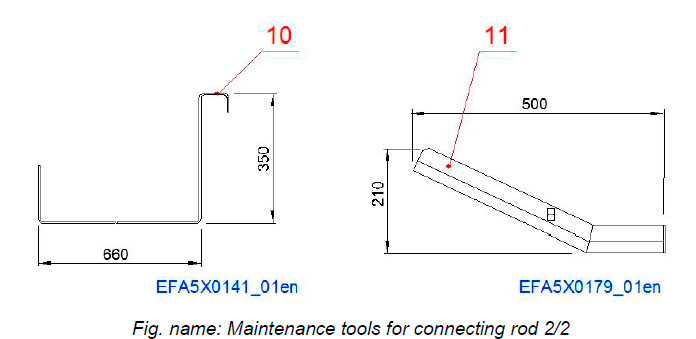

MAINTENANCE TOOLS FOR CONNECTING ROD 2/2

Maintenance tools for connecting rod 2/2

  • 10 Lock and foot support for big end bearing - 4,5 kg
  • 11 Protection sleeve for connecting rod - 4 kg

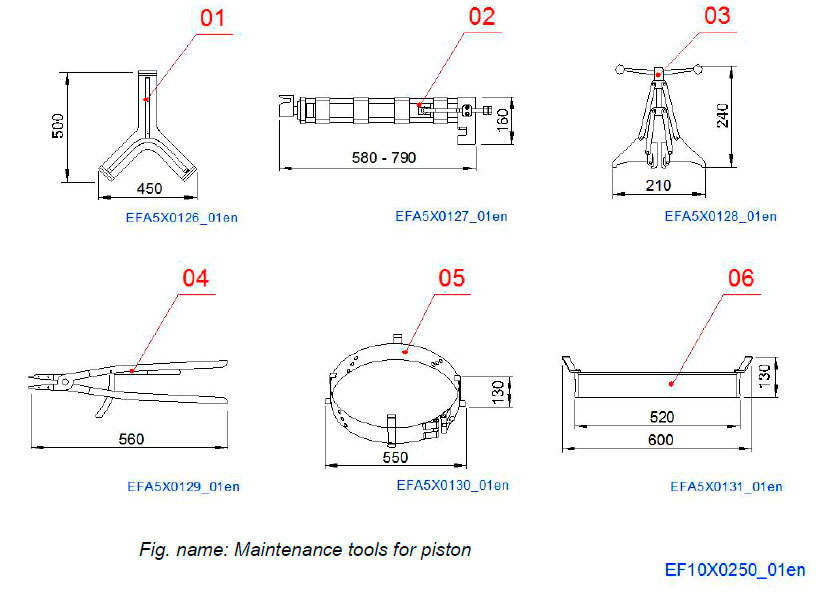

MAINTENANCE TOOLS FOR PISTON

Maintenance tools for piston

  • 01 Lifting tool for piston - 39 kg
  • 02 Lifting tool for piston - 20 kg
  • 03 Pliers for piston rings - 0,5 kg
  • 04 Pliers for securing ring - 1,3 kg
  • 05 Clamp device for piston rings - 3 kg
  • 06 Assembly tools for piston and upper part of connecting rod - 9 kg

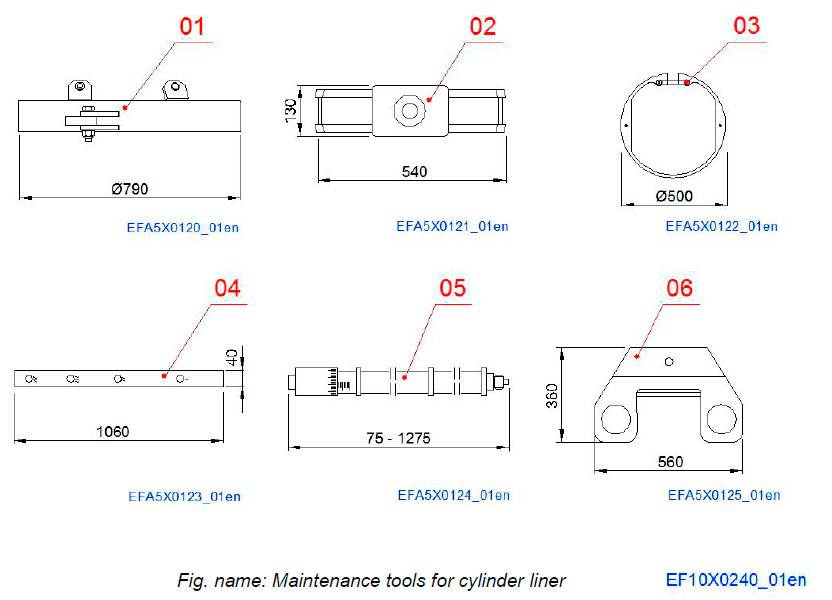

MAINTENANCE TOOLS FOR CYLINDER LINER

Maintenance tools for cylinder liner

  • 01 Lifting tool for cylinder liner - 20 kg
  • 02 Lifting tool for cylinder liner - 11 kg
  • 03 Dismounting tool for anti-polishing ring - 21 kg
  • 04 Measuring rail for cylinder liner - 2 kg
  • 05 Inside micrometer for cylinder liner - 0,6 kg
  • 06 Bracket for lifting tool -

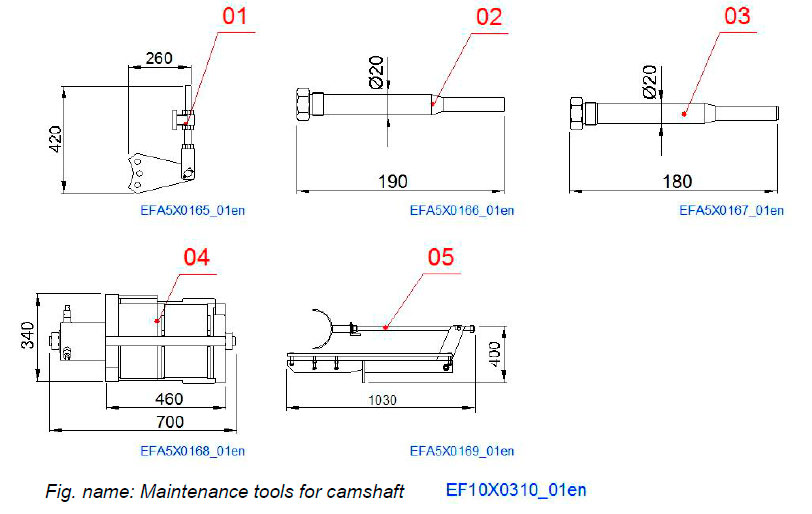

MAINTENANCE TOOLS FOR CAMSHAFT

Maintenance tools for camshaft

  • 01 Locking device for camshaft - 16 kg
  • 02 Locking bar for valve tappet - 0,4 kg
  • 03 Locking bar for injection pump tappet - 0,4 kg
  • 04 Mounting device for camshaft bearing - 70 kg
  • 05 Camshaft mounting device - 31 kg

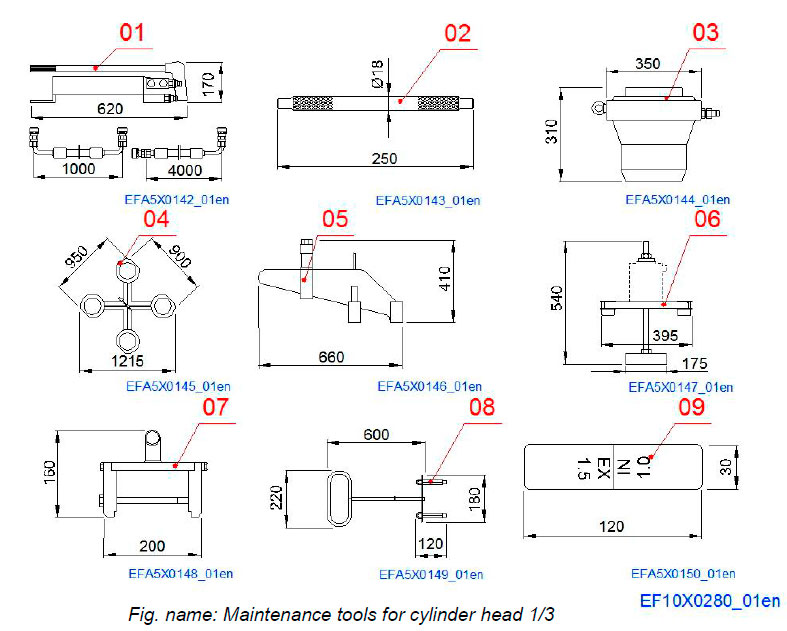

MAINTENANCE TOOLS FOR CYLINDER HEAD 1/3

Maintenance tools for cylinder head 1/3

  • 01 Hydraulic pump with hoses - 30 kg
  • 02 Pin for hydraulic tensioning tool - 0,6 kg
  • 03 Hydraulic tightening device (M90x6) - 95 kg
  • 04 Lifting tool for tightening device - 120 kg
  • 05 Lifting tool for cylinder head - 32 kg
  • 06 Mounting device for valves - 38 kg
  • 07 Lapping tool for valve - 4 kg
  • 08 Eye-bolt for injection valve - 2 kg
  • 09 Feeler gauge for valve clearance -

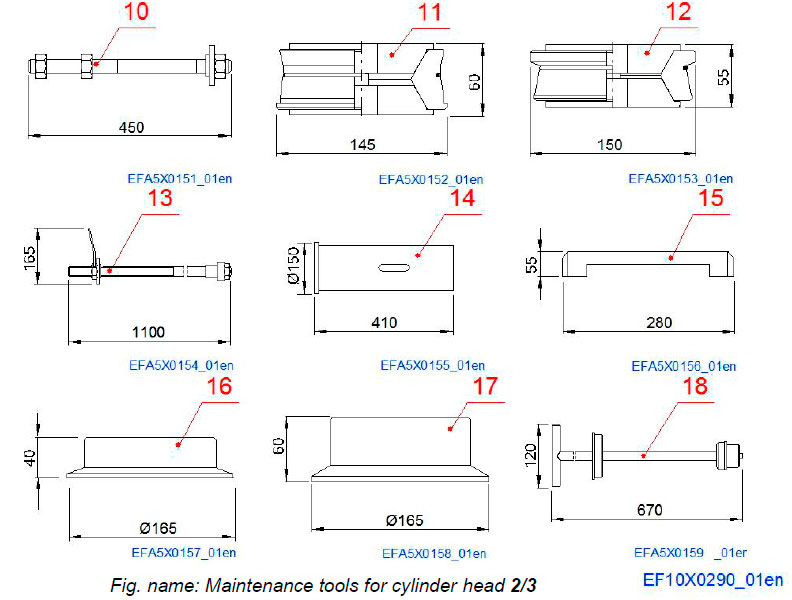

MAINTENANCE TOOLS FOR CYLINDER HEAD 2/3

Maintenance tools for cylinder head 2/3

  • 10 Spindle for valve seat rings - 1,4 kg
  • 11 Removing tool for exhaust valve seat ring - 4,8 kg
  • 12 Removing tool for inlet valve seat ring - 4,6 kg
  • 13 Spindle for valve guide removing tool - 5 kg
  • 14 Bed for tension cylinder - 5,2 kg
  • 15 Bed for tension cylinder - 5,6 kg
  • 16 Assembly tool for inlet valve seat ring - 5 kg
  • 17 Assembly tool for exhaust valve seat ring - 7 kg
  • 18 Lapping tool for starting valve sealing surface - 2,6 kg

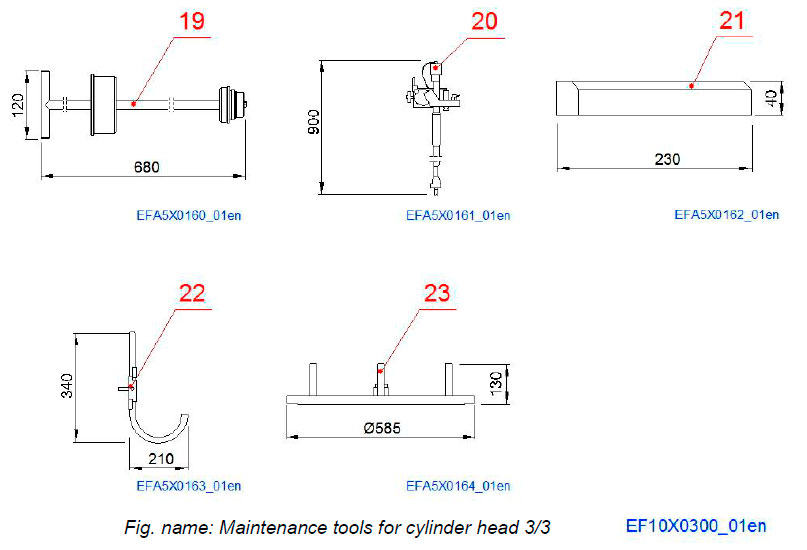

MAINTENANCE TOOLS FOR CYLINDER HEAD 3/3

Maintenance tools for cylinder head 3/3

  • 19 Lapping tool for injection valve sealing surface - 4,3 kg
  • 20 Grinding machine for valve seats - 18 kg
  • 21 Flange for removing tool - 13 kg
  • 22 Lifting tool for rocker arms - 2 kg
  • 23 Grinding tool for sealing surface of cylinder head and liner - 53 kg

Tools for Fuel system

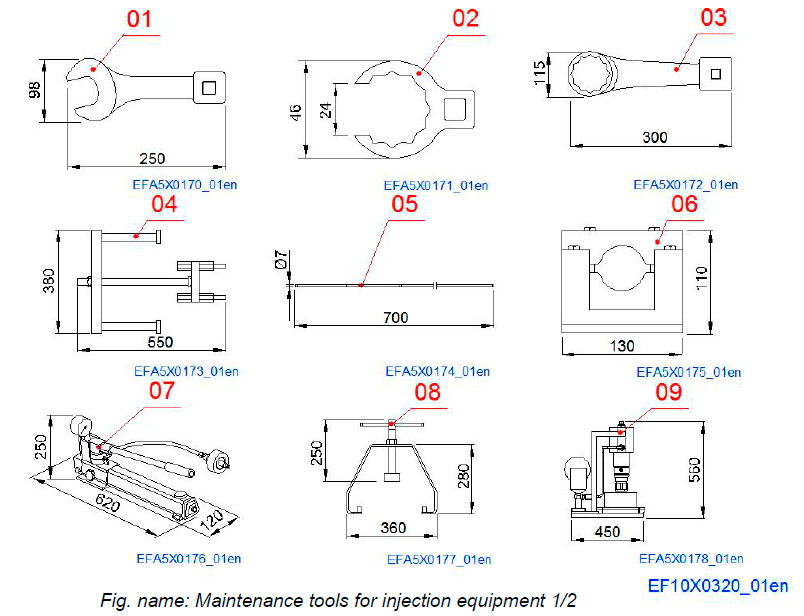

MAINTENANCE TOOLS FOR INJECTION EQUIPMENT 1/2

Maintenance tools for injection equipment 1/2

  • 01 Special key - 3,5 kg
  • 02 Flare nut wrench - 0,1 kg
  • 03 Special key for main nozzle -
  • 04 Extractor tool for inj. pump spindle - 15 kg
  • 05 Assembly tool for main fuel inj. pipe - 0,2 kg
  • 06 Clamping tool for nozzle removal - 4 kg
  • 07 Ass. tool for pilot pump gear wheel -
  • 08 Extractor tool for inj. pump spindle - 4,3 kg
  • 09 Testing device for nozzle equipment - 20 kg

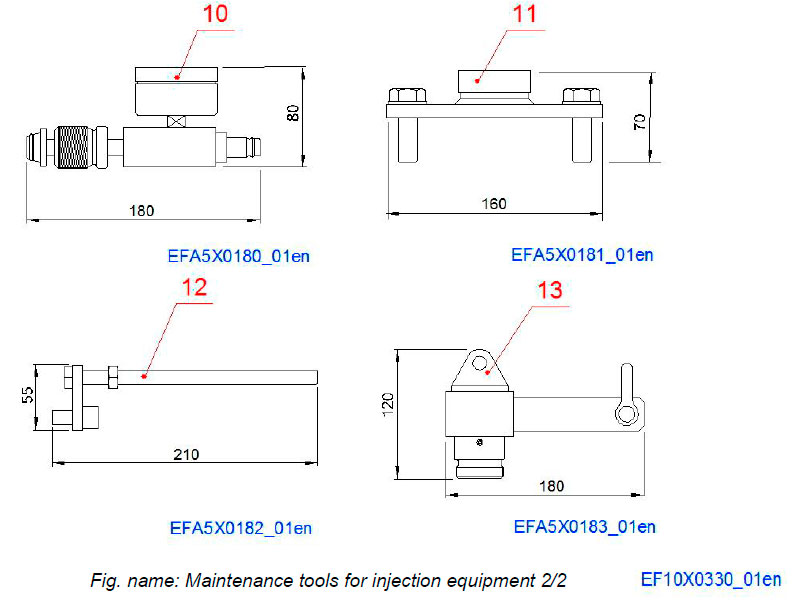

MAINTENANCE TOOLS FOR INJECTION EQUIPMENT 2/2

Maintenance tools for injection equipment 2/2

  • 10 Timing tool for injection pump - 2 kg
  • 11 Yoke for lifting of injection pump - 2 kg
  • 12 Compr. tool for double wall gas bellows -
  • 13 Lifting tool for injection pump - 2 kg

Tools for Cooling water systems

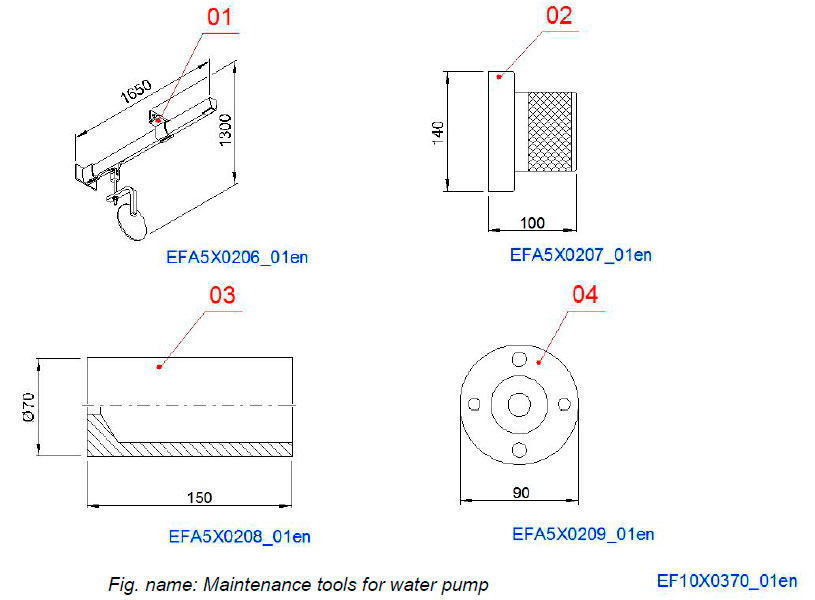

MAINTENANCE TOOLS FOR WATER PUMP

Maintenance tools for water pump

  • 01 Lifting tool for water pump - 90 kg
  • 02 Assembling tool for bearing, WD-200 - 5 kg
  • 03 Assembling tool for sealing, WD-200 - 3 kg
  • 04 Extractor for impeller, WD-200 - 1,5 kg

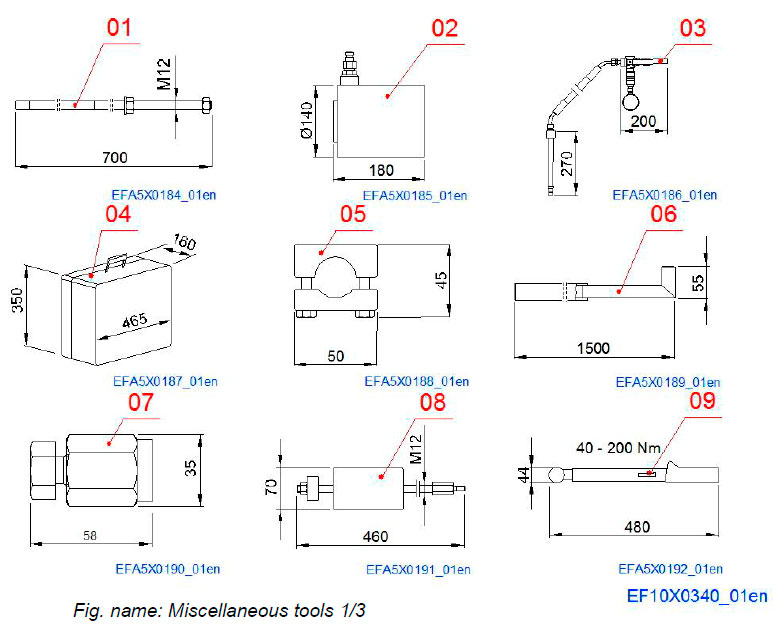

Miscellaneous tools 1/3

Miscellaneous tools 1/3

  • 01 Mounting device for overspeed trip device - 0,5 kg
  • 02 Hydraulic tensioning cylinder - 19 kg
  • 03 Checking device for cylinder - 4,5 kg
  • 04 Deflection indicator for crankshaft - 4,3 kg
  • 05 Limiter for fuel rack movement - 0,3 kg
  • 06 Lever for draw of overspeed trip - 2,5 kg
  • 07 Mounting device for screw (M20) - 0,2 kg
  • 08 Universal puller - 4,3 kg
  • 09 Torque wrench 40-200 Nm - 1,5 kg

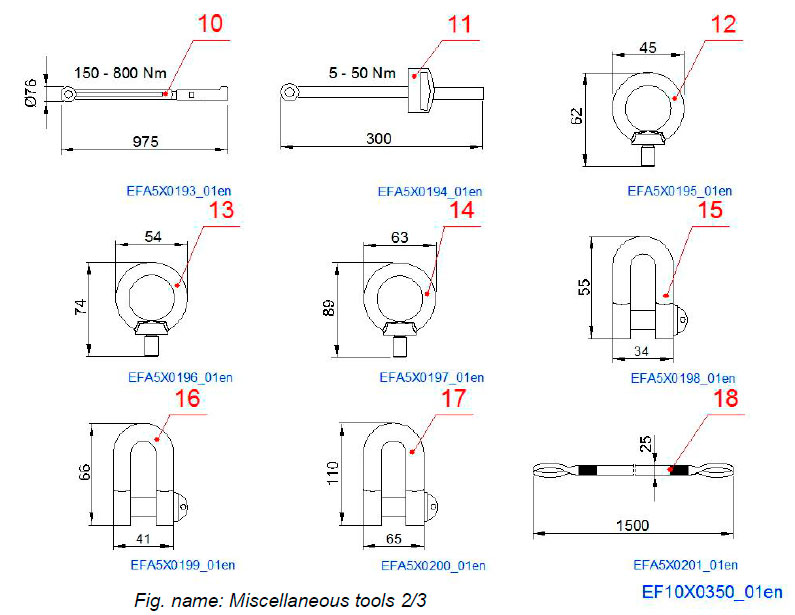

Miscellaneous tools 2/3

Miscellaneous tools 2/3

  • 10 Torque wrench 150-800 Nm - 4,8 kg
  • 11 Torque wrench 5-50 Nm - 0,8 kg
  • 12 Eye bolt screw M10 - 0,1 kg
  • 13 Eye bolt screw M12 - 0,2 kg
  • 14 Eye bolt screw M16 - 0,3 kg
  • 15 Shackle A0,4 - 0,1 kg
  • 16 Shackle A0,6 - 0,2 kg
  • 17 Shackle A1,6 - 0,4 kg
  • 18 Lifting bend 500 kg - 1 kg

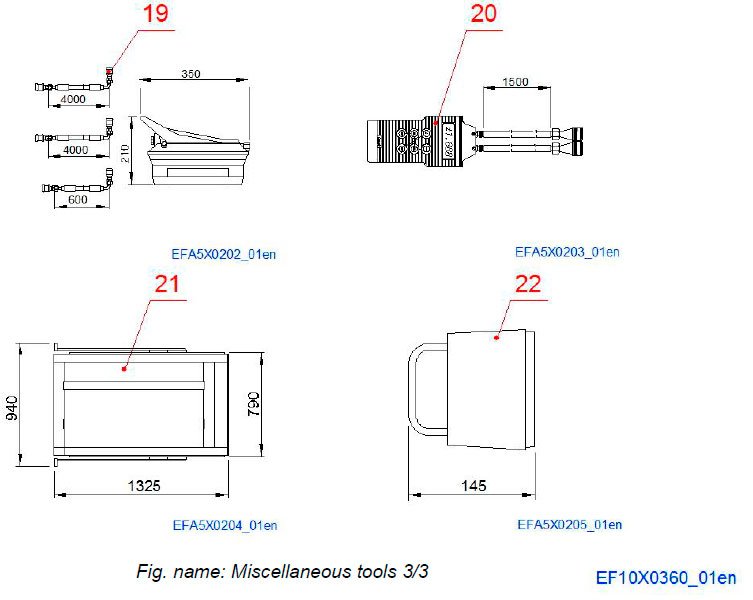

Miscellaneous tools 3/3

Miscellaneous tools 3/3

  • 19 Air operated hydraulic pump unit - 17 kg
  • 20 Differential pressure gauge - 3 kg
  • 21 Mounting device for air cooler -
  • 22 Guiding mandrel for assemling of seal on HT pipe - 4 kg
