Content
- Temperature sensors for Engine main systems
- Sensors for cylinders
- Sensors for Fuel system
- Sensors for Lubricating oil system
- Sensors for Cooling water system
- Sensors at free end
- Sensors at driving end
- Sensors for Intake and Exhaust systems
- Sensors for Control and Instrumentation systems
- Speed measuring system
Temperature sensors for Engine main systems

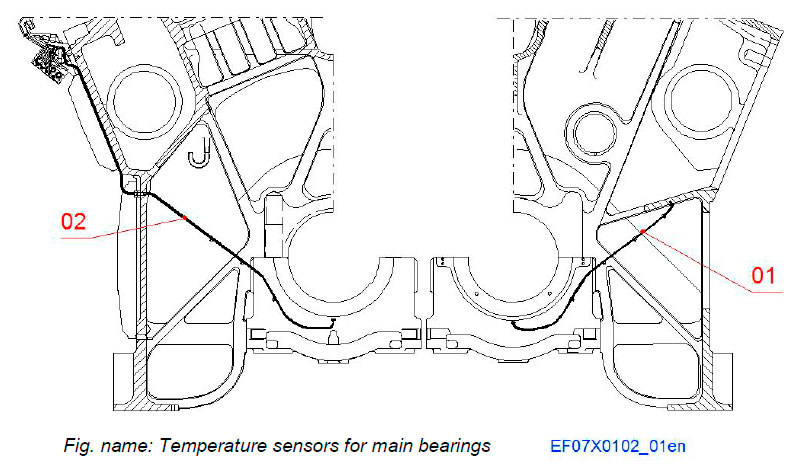

TEMPERATURE SENSORS FOR MAIN BEARINGS
Components
- 01 Temperature sensors for zero main bearing TE700
- 02 Temperature sensors for main bearing TE701…TE707

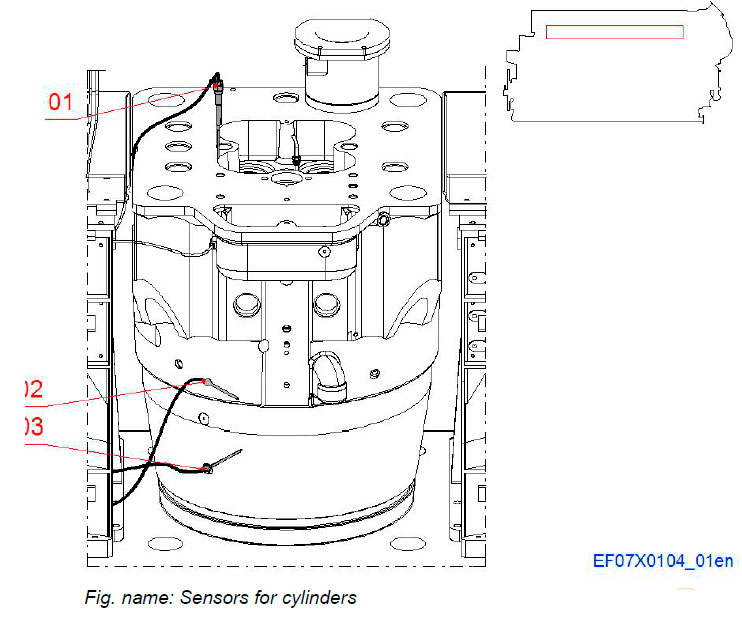

Sensors for cylinders
Components
- 01 Temperature sensor for exhaust gas TE5011A…TE50*1A
- 01 Temperature sensor for exhaust gas TE5011B…TE50*1B
- 02 Temperature sensor for cylinder liner TE7012A…TE70*2A
- 02 Temperature sensor for cylinder liner TE7012B…TE70*2B
- 03 Temperature sensor for cylinder liner TE7011A…TE70*1A
- 03 Temperature sensor for cylinder liner TE7011B…TE70*1B

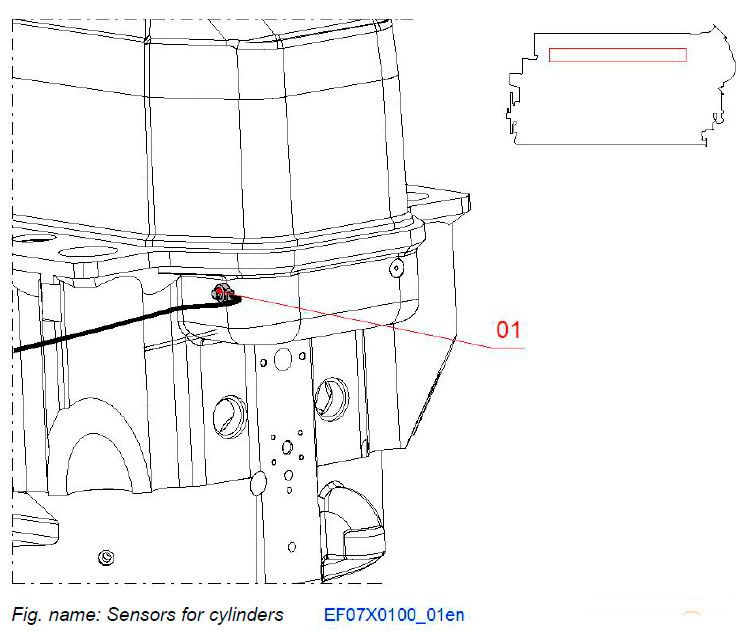

Sensors for cylinders
Components
- 01 01 Knock sensor SE614A-SE6*4A
- 01 02 Knock sensor SE614B-SE6*4B
Sensors for Fuel system

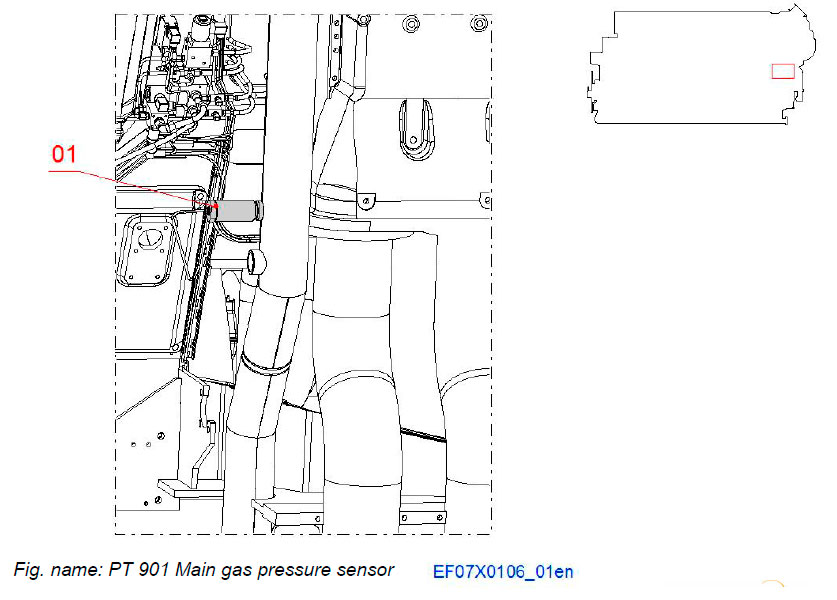

PT901 MAIN GAS PRESSURE SENSOR
Components
- 01 Main gas pressure sensor PT901

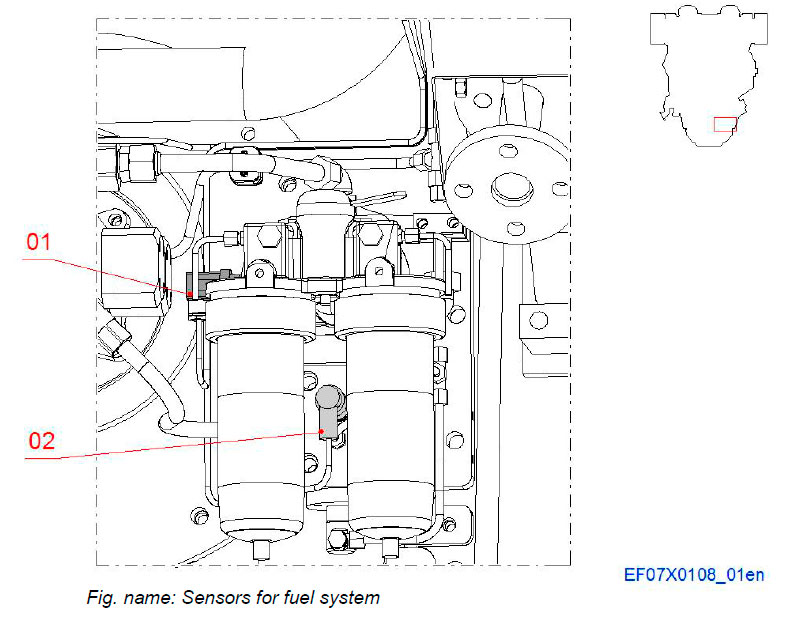

Sensors for Fuel system
Components
- 01 Pressure difference sensor for pilot fuel filter PDS129
- 02 Pressure difference sensor for pilot fuel, pump outlet PT125

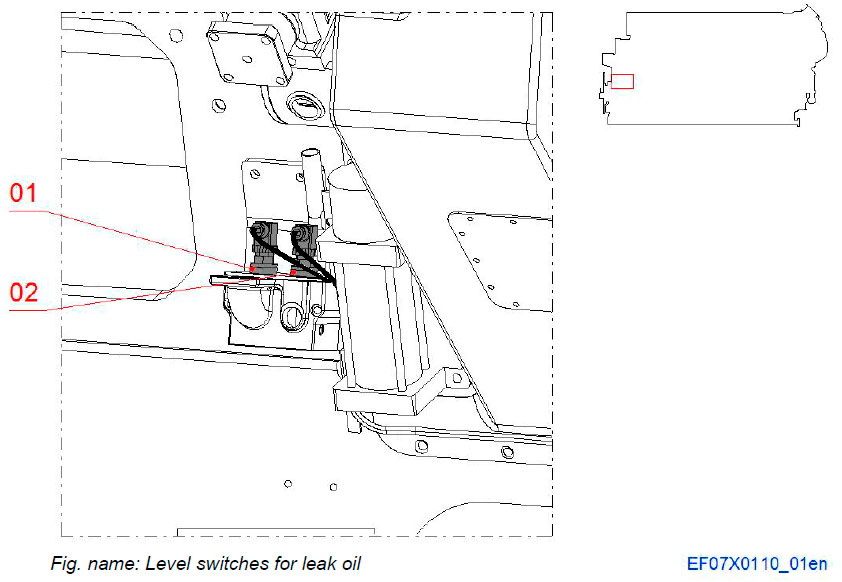

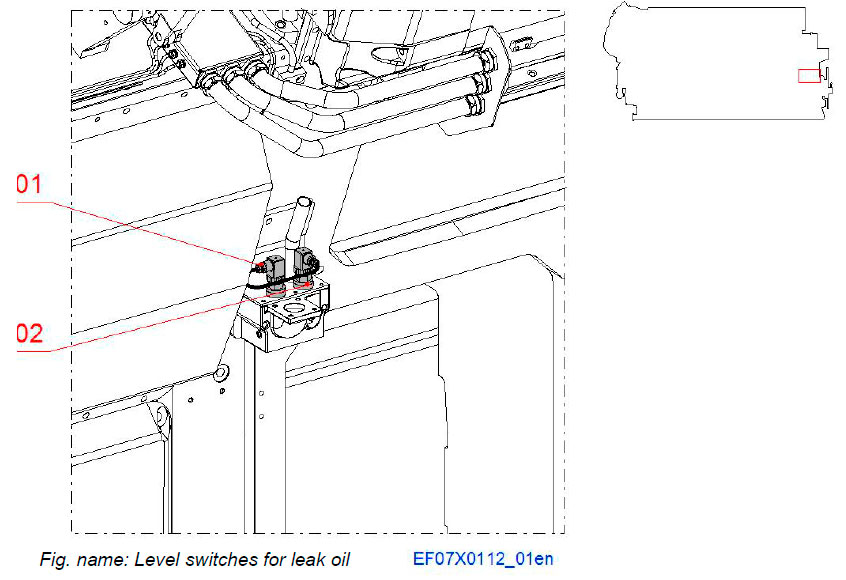

LEVEL SWITCHES FOR LEAK OIL
Components
- 01 Level switch for leak oil, dirty fuel LS108, Abank
- 02 Level switch for leak oil, clean fuel LS103, A-bank
LEVEL SWITCHES FOR LEAK OIL
Components
- 01 Level switch for leak oil, dirty fuel LS108, B-bank
- 02 Level switch for leak oil, clean fuel LS103, B-bank
Sensors for Lubricating oil system

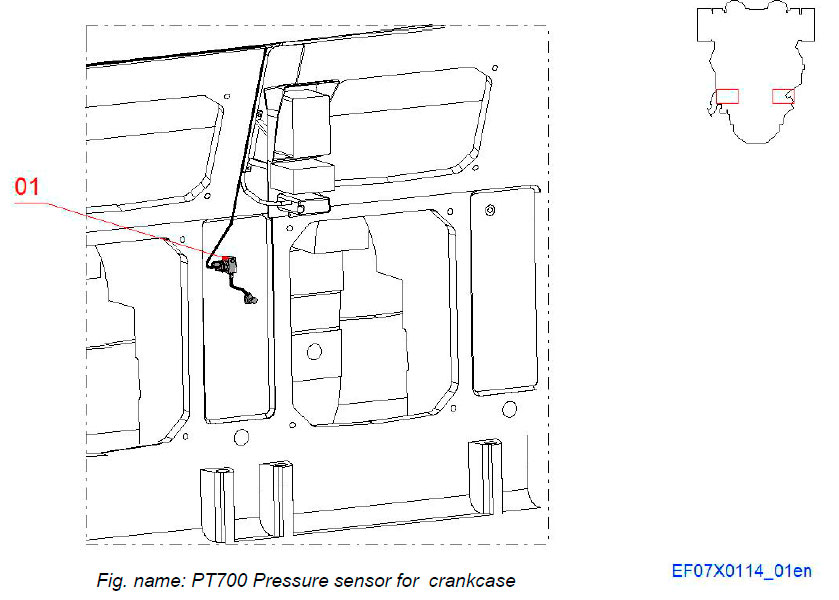

PT700 PRESSURE SENSOR FOR CRANKCASE
Components
- 01 Pressure sensor for crankcase PT700

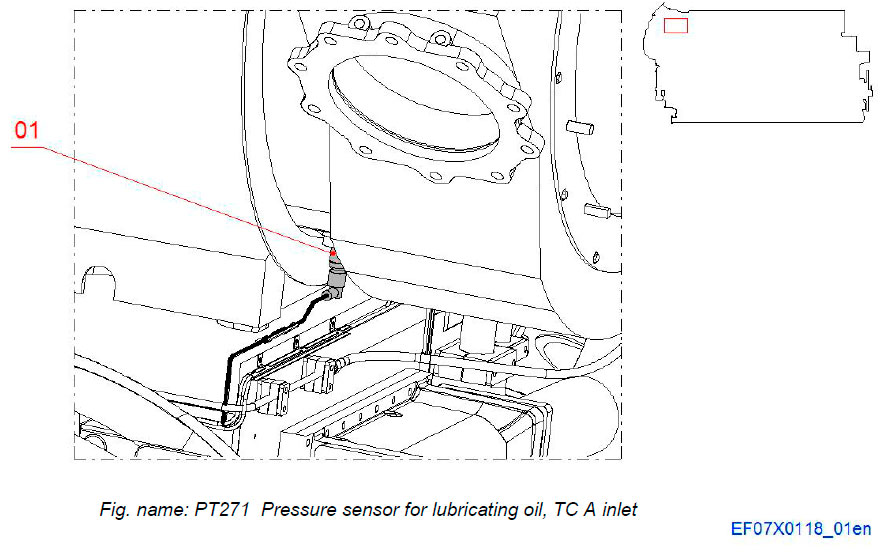

PT271 PRESSURE SENSOR FOR LUBRICATING OIL, TC A INLET
Components
- 01 Pressure sensor for lubricating oil, TC A inlet PT271

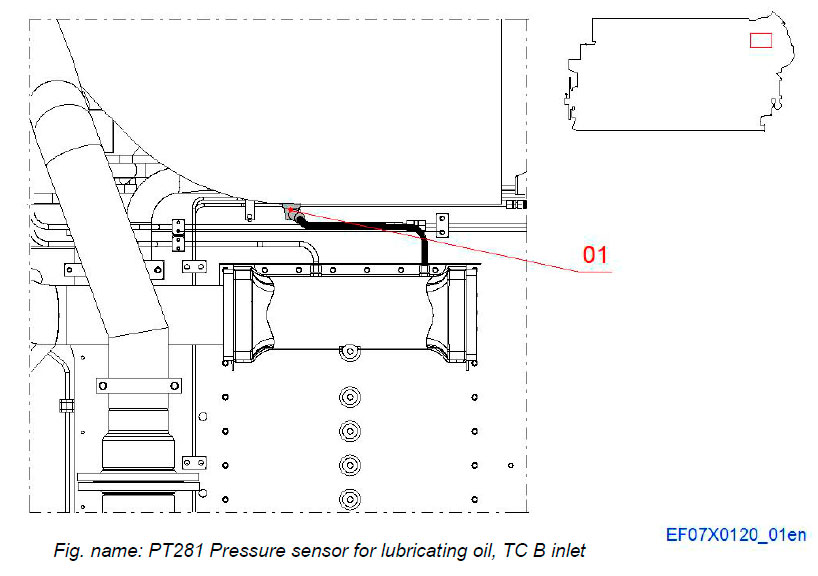

PT281 PRESSURE SENSOR FOR LUBRICATING OIL, TC B INLET
Components
- 01 Pressure sensor for lubricating oil, TC B inlet PT281

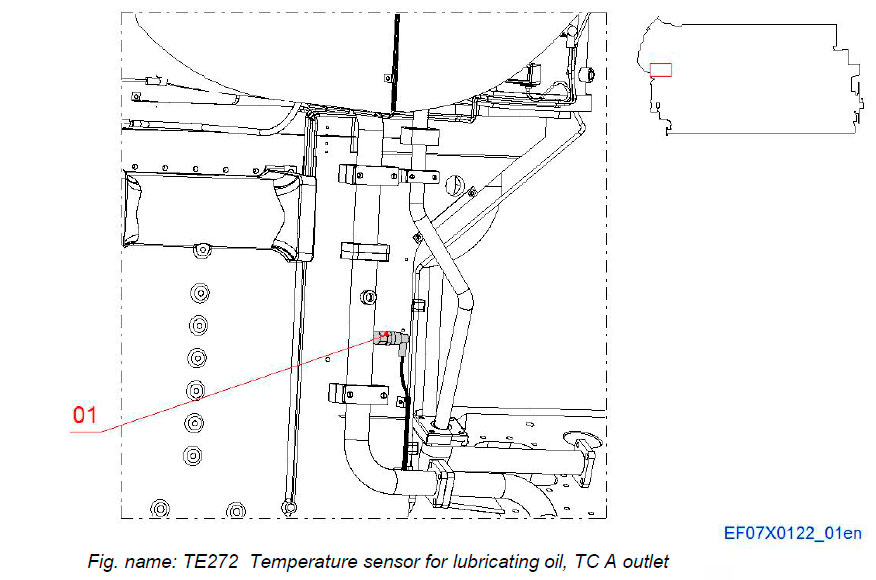

TE272 TEMPERATURE SENSOR FOR LUBRICATING OIL, TC A OUTLET
Components
- 01 Temperature sensor for lubricating oil, TC A outlet TE272

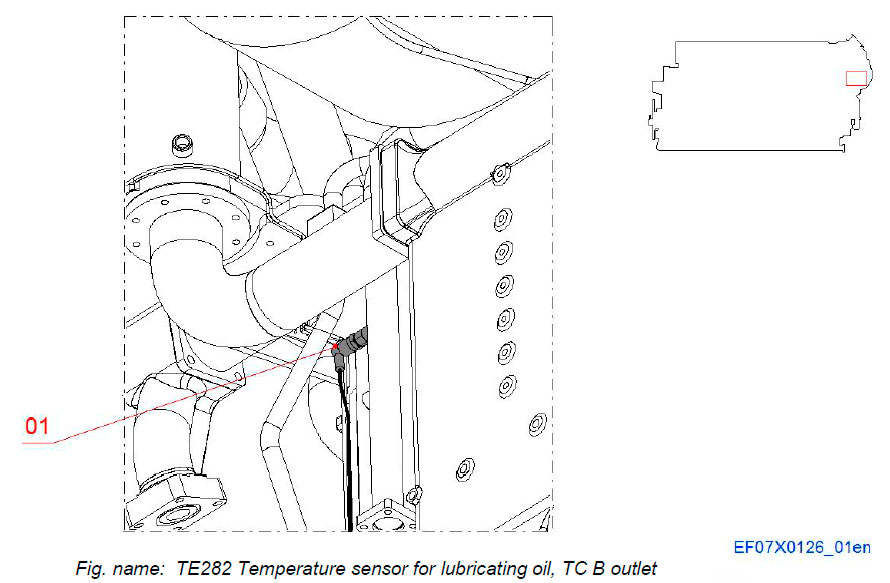

TE282 TEMPERATURE SENSOR FOR LUBRICATING OIL, TC B OUTLET
Components
- 01 Temperature sensor for lubricating oil, TC B outlet TE282

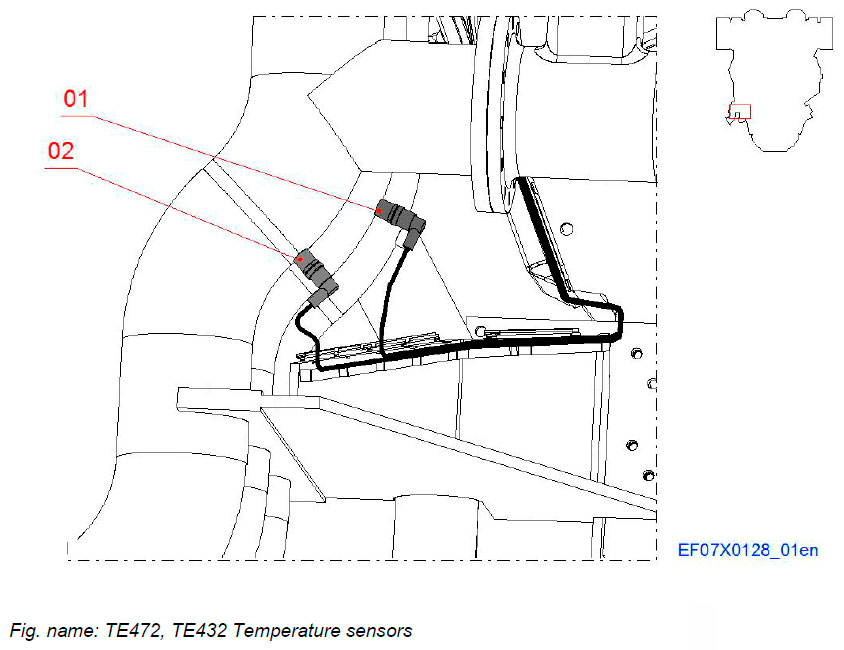

Sensors for Cooling water system
Components
- 01 Temperature sensor for LT water, CAC outlet TE472
- 02 Temperature sensor for HT water, CAC outlet TE432

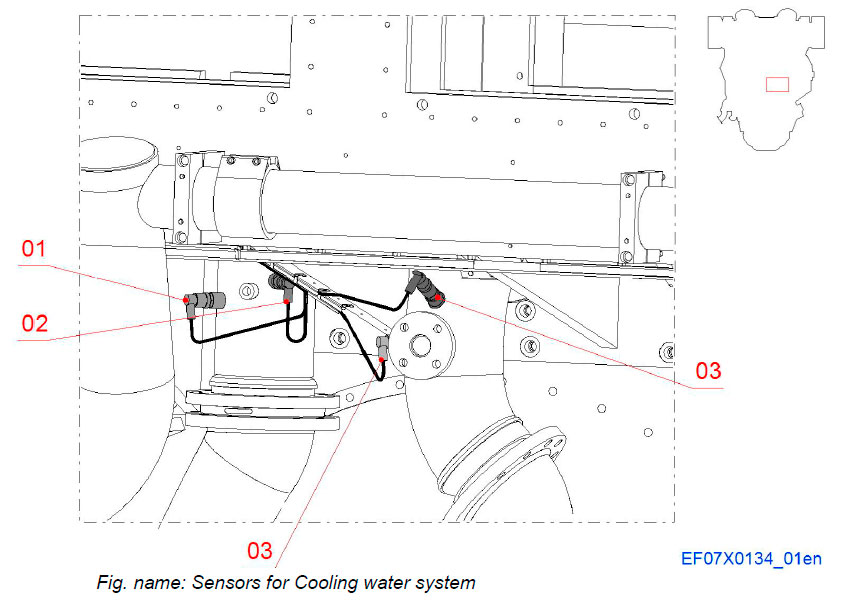

Sensors for Cooling water system
Components
- 01 Temperature sensor for LT water, CAC inlet TE471
- 02 Pressure sensor for LT water, CAC inlet PT471
- 03 Temperature sensor for HT water, jacket inlet TE401
- 04 Pressure sensor for HT water, jacket inlet PT401

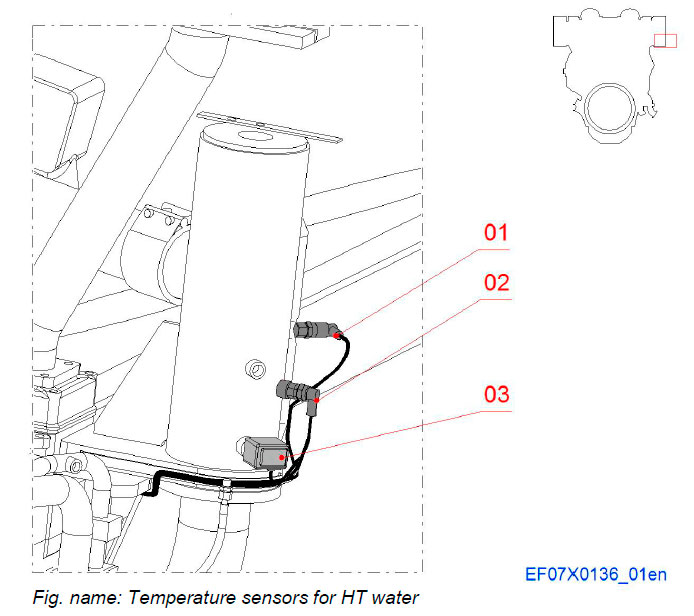

Sensors for Cooling water system
Components
- 01 Temperature sensor for HT water, jacket outlet A-bank TSZ402
- 02 Temperature sensor for HT water, jacket outlet A-bank TE402
- 03 Temperature sensor for HT water, jacket outlet TE402-2

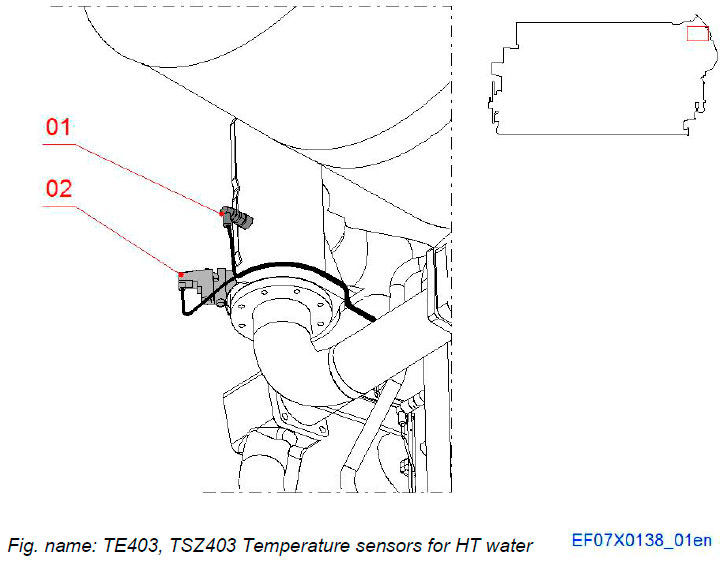

Sensors for Cooling water system
Components
- 01 Temperature sensor for HT water, jacket outlet B-bank TE403
- 02 Temperature sensor for HT water, jacket outlet B-bank TSZ403

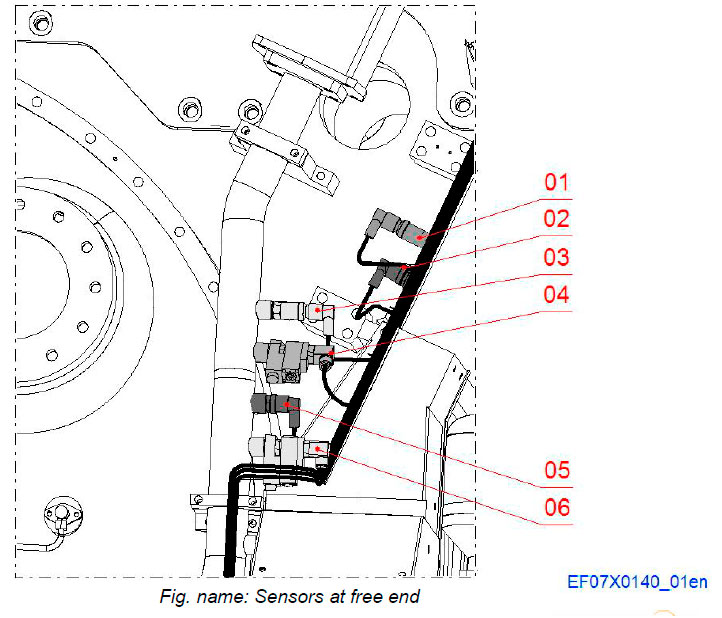

Sensors at free end
Components
- 01 Pressure sensor for fuel oil, engine inlet PT101
- 02 Temperature sensor for fuel oil, engine inlet TE101
- 03 Pressure sensors for lube oil, engine inlet PT201
- 04 Pressure sensors for lube oil, engine inlet PT201-2
- 05 Temperature sensor for lube oil, engine inlet TE201
- 06 Lubrication oil pressure sensor, engine inlet PSZ201

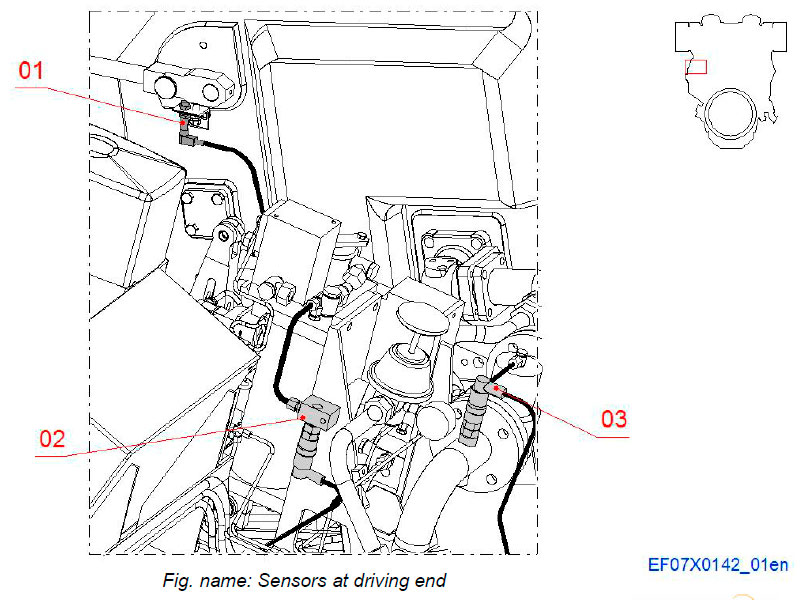

Sensors at driving end
Components
- 01 Position sensor for stop lever GS171
- 02 Pressure sensor for control air PT311
- 03 Pressure sensor for starting air, engine inlet PT301

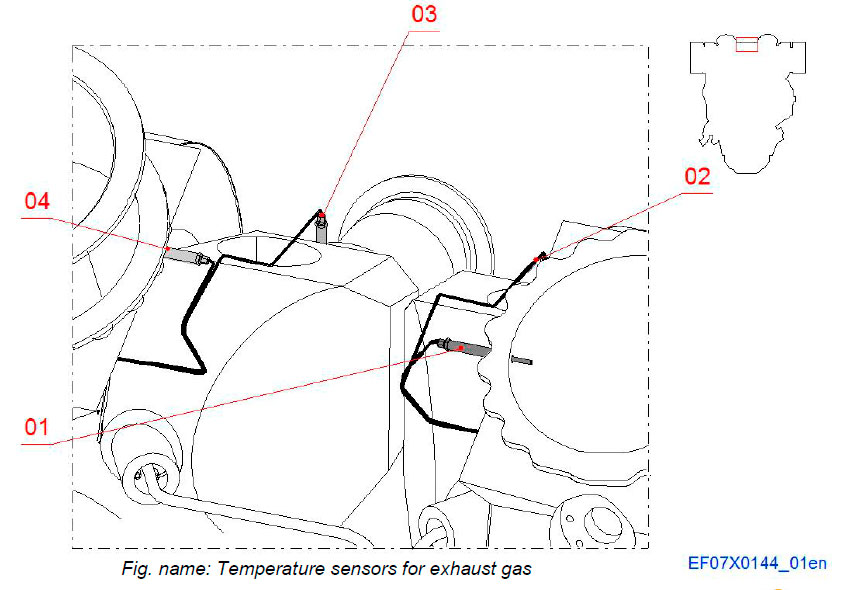

Sensors for Intake and Exhaust systems
Components
- 01 Temperature sensor for exhaust gas, TC A inlet TE511
- 02 Temperature sensor for exhaust gas, TC A outlet TE517
- 03 Temperature sensor for exhaust gas, TC B inlet TE521
- 04 Temperature sensor for exhaust gas, TC B outlet TE527
Sensors for Intake and Exhaust systems

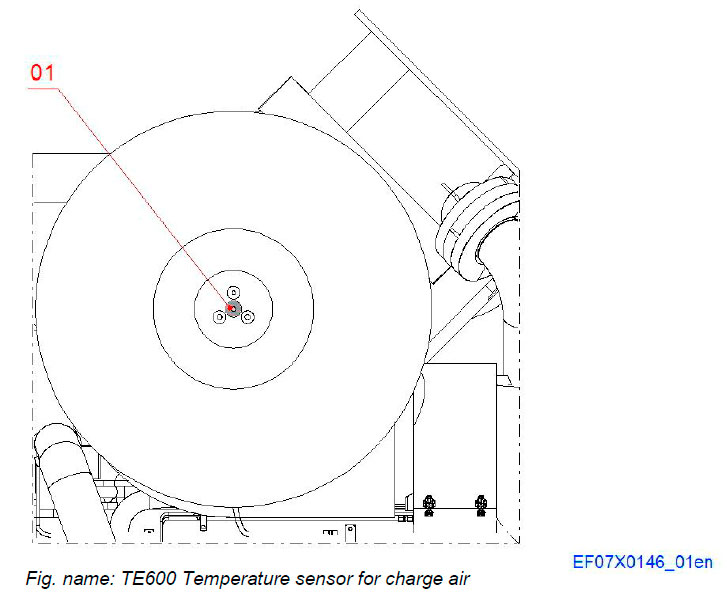

TE600 TEMPERATURE SENSOR FOR CHARGE AIR
Components
- 01 Temperature sensor for charge air, TC inlet TE600

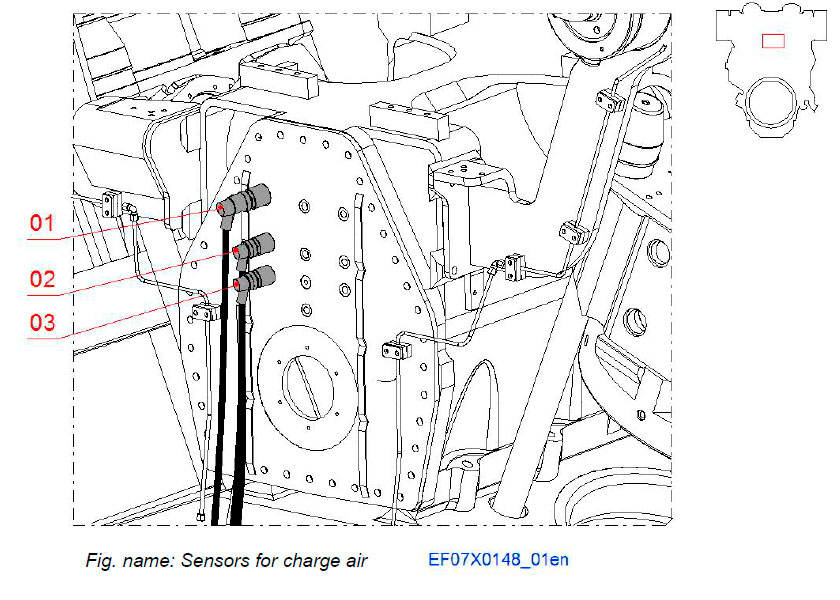

Sensors for Intake and Exhaust systems
Components
- 01 Pressure sensor for charge air, engine inlet PT601
- 02 Temperature sensor for charge air, engine inlet TE601
- 03 Temperature sensor for charge air, engine inlet TCE601
Sensors for Control and Instrumentation systems

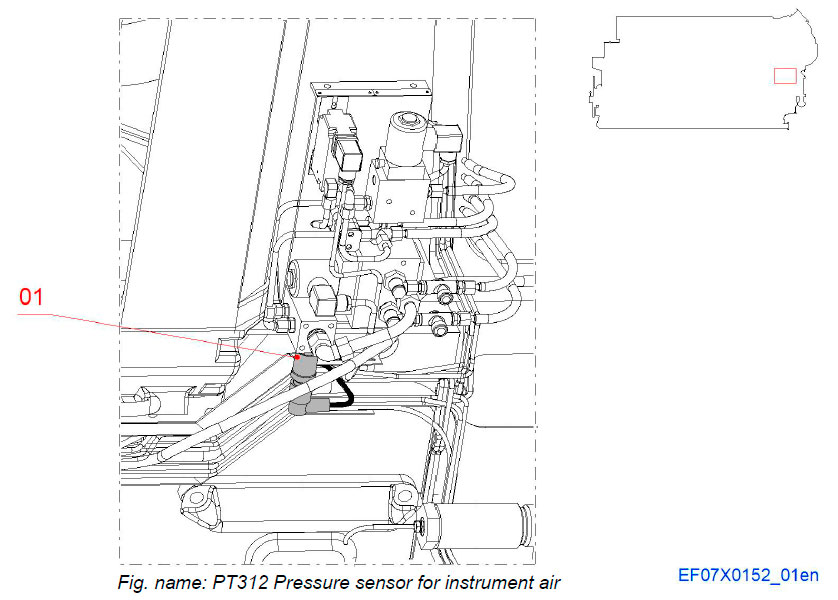

PT312 PRESSURE SENSOR FOR INSTRUMENT AIR
Components
- 01 Pressure sensor for instrument air PT312
Sensors for Control and Instrumentation systems

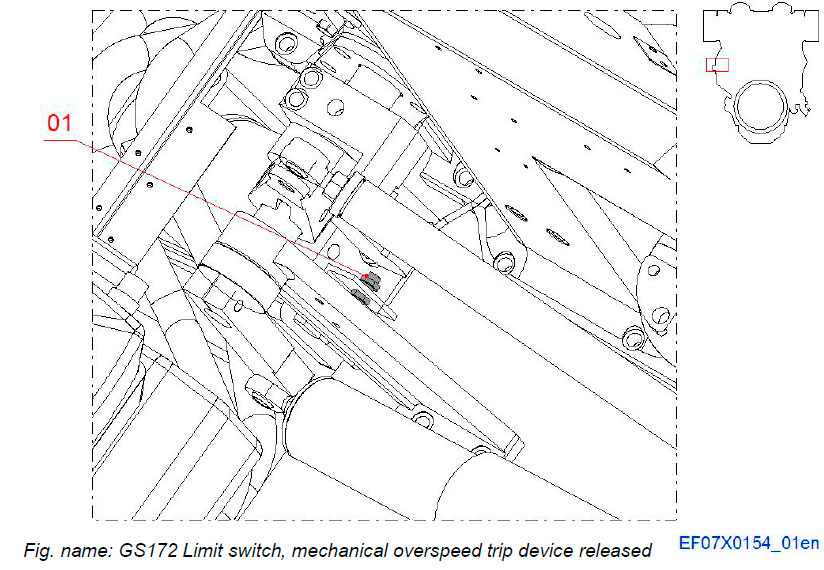

GS172 LIMIT SWITCH, MECHANICAL OVERSPEED TRIP RELEASED
Components
- 01 Limit switch, mechanical overspeed trip released GS172
Sensors for Control and Instrumentation systems

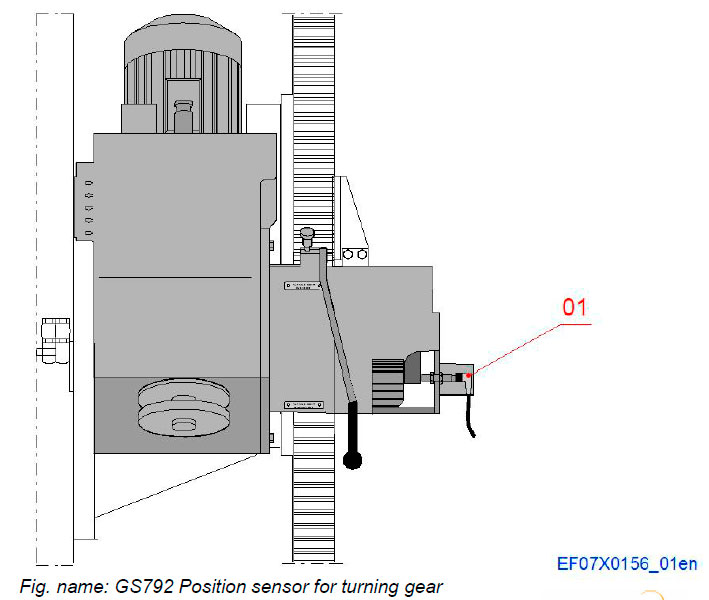

GS792 POSITION SENSOR FOR TURNING GEAR
Components
- 01 Position sensor for turning gear GS792
Speed measuring system

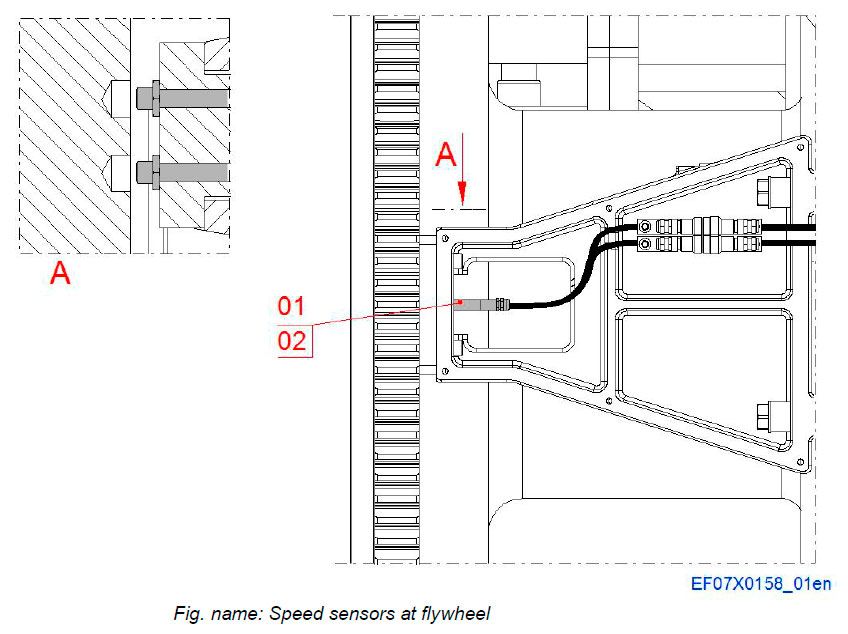

SPEED SENSORS AT FLYWHEEL
Components
- 01 Engine speed sensors at flywheel ST196S
- 02 Engine speed sensors at flywheel ST196P

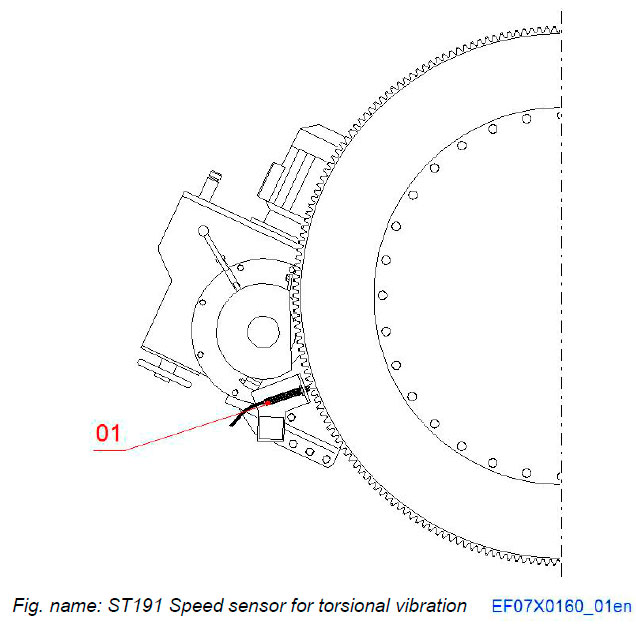

ST191 SPEED SENSOR FOR TORSIONAL VIBRATION
Components
- 01 Engine speed sensor for torsional vibration ST191

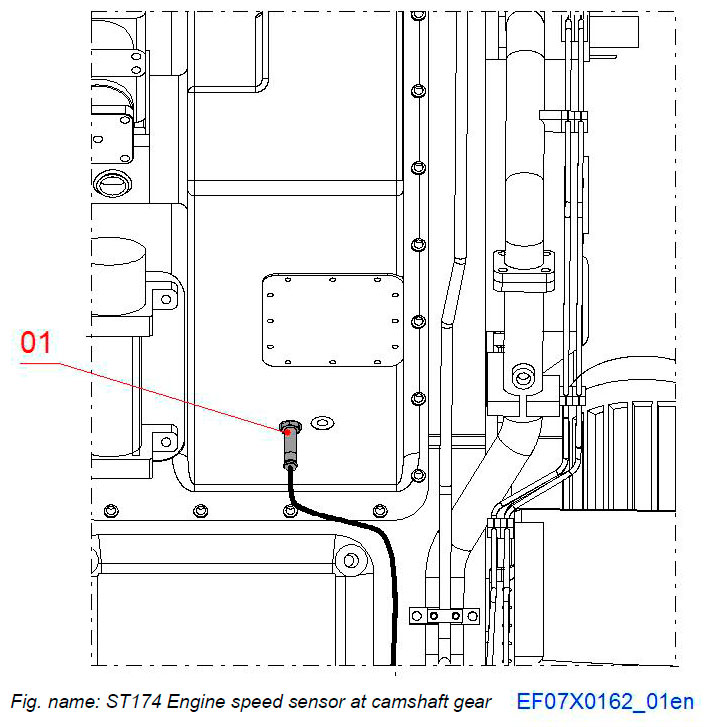

ST174 SPEED SENSORS AT CAMSHAFT GEAR
Components
- 01 Engine speed sensor at camshaft gear ST174

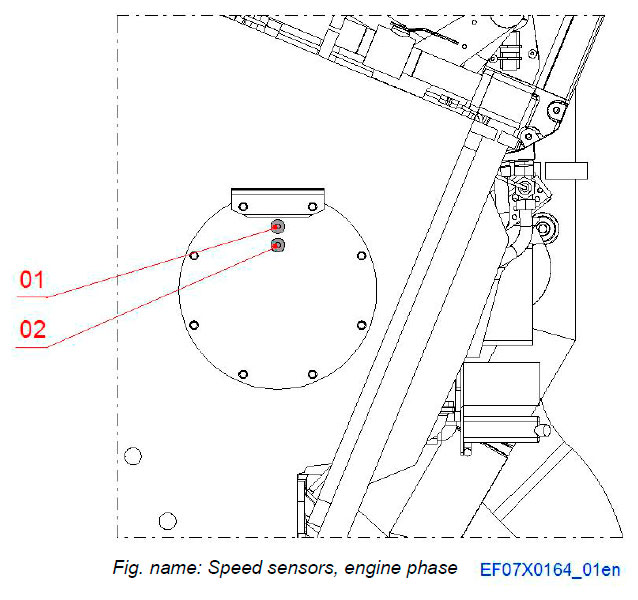

Speed measuring system
Components
- 01 Engine phase sensor 1 ST197P
- 02 Engine phase sensor 2 ST197S

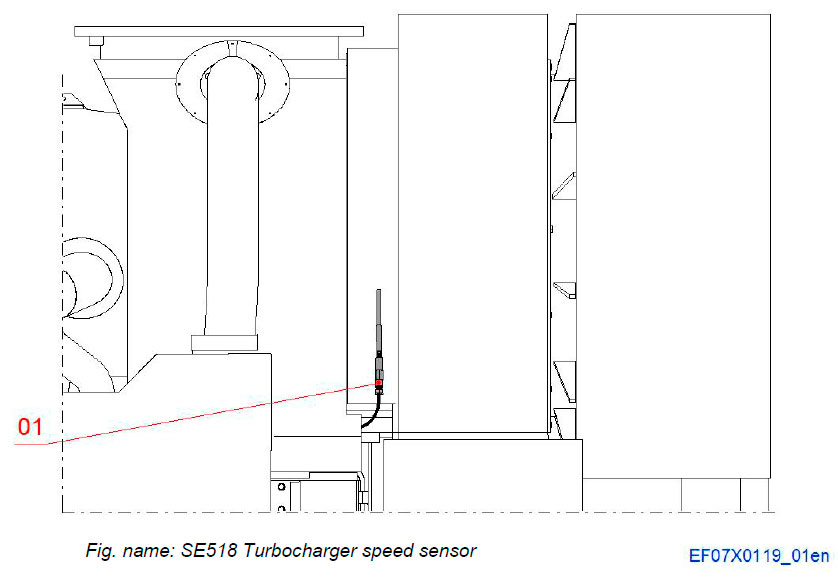

SE518 TURBOCHARGER SPEED SENSOR
Components
- 01 Turbocharger speed sensor SE518
